Shacman H3000 6*4 Dump Truck Sinotruk/Shacman/FAW/Foton/Dongfeng Truck

Name: Shacman H3000 64 Dump Truck SinotrukShacmanFAWFotonDongfeng Truck
Brand: SHACMAN
Price: 1 USD

Buy cheap Shacman H3000 6*4 Dump Truck Sinotruk/Shacman/FAW/Foton/Dongfeng Truck product

Brand Name : SHACMAN

Model Number : SX3315DU366

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1 Piece

Price : Negotiation

Payment Terms : L/C, T/T, D/A, Western Union

Supply Ability : 5000pcs/year

Delivery Time : Full payment 15-20 work days

Packaging Details : Naked, frame, container

Wheelbase : 3775+1400mm

Gearbox : FAST 10JSD120

Clutch : φ430 diaphragm spring

Tank capacity : 380L

Tire : 13R22.5,10+1pc

Overall dimension : 8275×2500×3450mm

Contact Now

Shacman H3000 6*4 Dump Truck Sinotruk/Shacman/FAW/Foton/Dongfeng Truck

Advantage:

Our main products include full series products of CNHTC(HOWO,STR,Golden Prince,etc.), buses, trailers, including dump truck, tractor truck, concrete mier truck, sprinkler truck, water/Oil tank truck, truck mounted crane, concrete pump truck.etc, low bed semi-trailer, flatbed semi-trailer, bulk cement semi-trailer, skeleton semi-trailer and spare parts for them.

Product Parameter

Shacman H3000 6×4 Dump Truck
Cab		MAN H3000 Cab Single bed Air conditioner
Driving Type		6*4 left hand drivng
Max Speed (km/h)		77
Overall dimension(mm)		8275×2500×3450mm
GVW( kg)		25000
Mass in working order ( kg)		11200
Wheelbase(mm)		3775+1400mm
F/R track base (mm)		1745/1620
F/R overhang (mm)		1525/1600
Approach/Departure Angel (°)		16/66
Max. gradeability (%)		28
Tire		13R22.5,10+1pc
Clutch		φ430 diaphragm spring
Steering		Hydraulic steering with power assistance
Gear box		FAST 10JSD120,10 Forward&2 Reverse,Manual
Tank capacity(L)		380
Bridge	Front axle	9.5T MAN 7500kg
Engine	Rear axle	16T STR 2×16000kg
	Model	WP10.380E22 ,EURO 2
	Fuel Type	Diesel fuel
	Type	Water cooled, four stroke, with exhaust valve brake, direct injection, supercharged intercooled
	Exhaust(ml)	9726
	Max output power/rotate speed (hp /rpm )	380hp/2200
	Max torque/rotate speed(N.m/rpm)	1460N.m/1200-1600
Braking system	Service Brake	Compressed air brake
	Park Brake	Spring energy
	Auxiliary brake	engine exhaust brake
Eletric system		24v
Payload(kg)		25000
Dump box dimension (LWH)(mm)		5600×2300×1500mm
Dump box material		Carbon steel
Dump box thickness (mm) side /bottom		4/8
Hydraulic cylinder		Front-placed T-Shape cylinder
Dump box color		According to customer's requirement

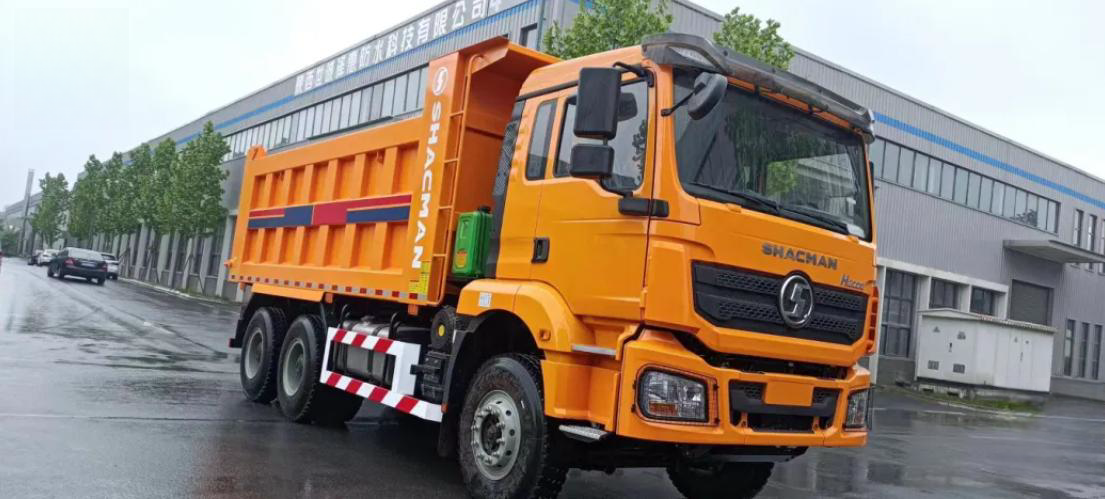

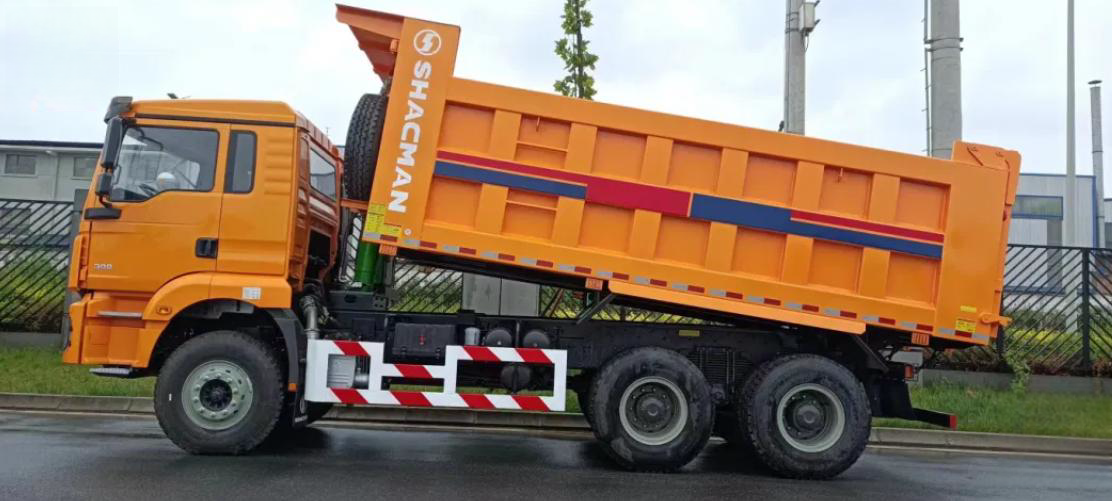

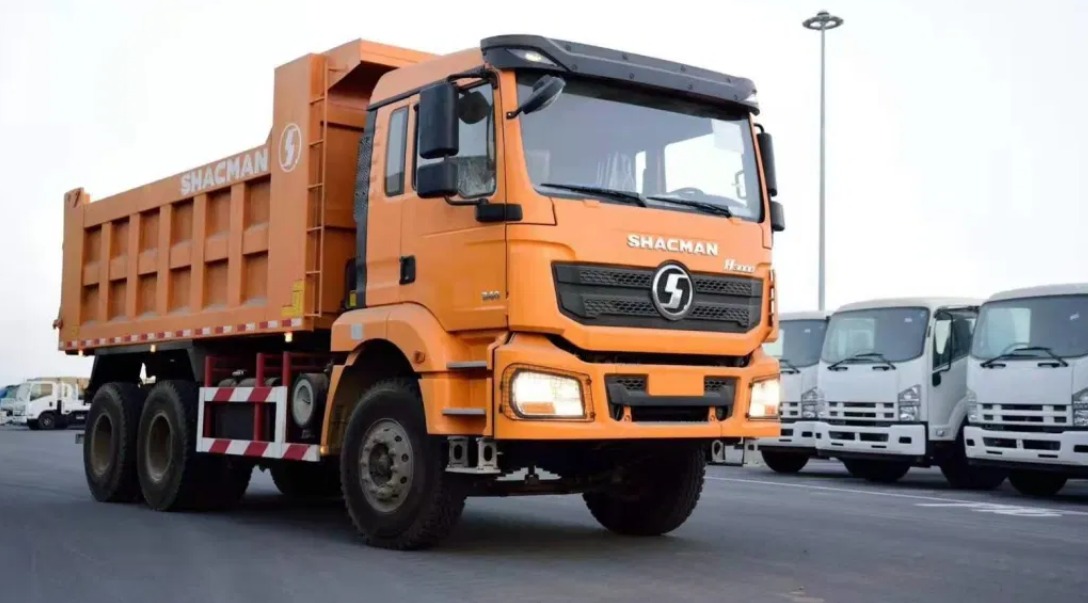

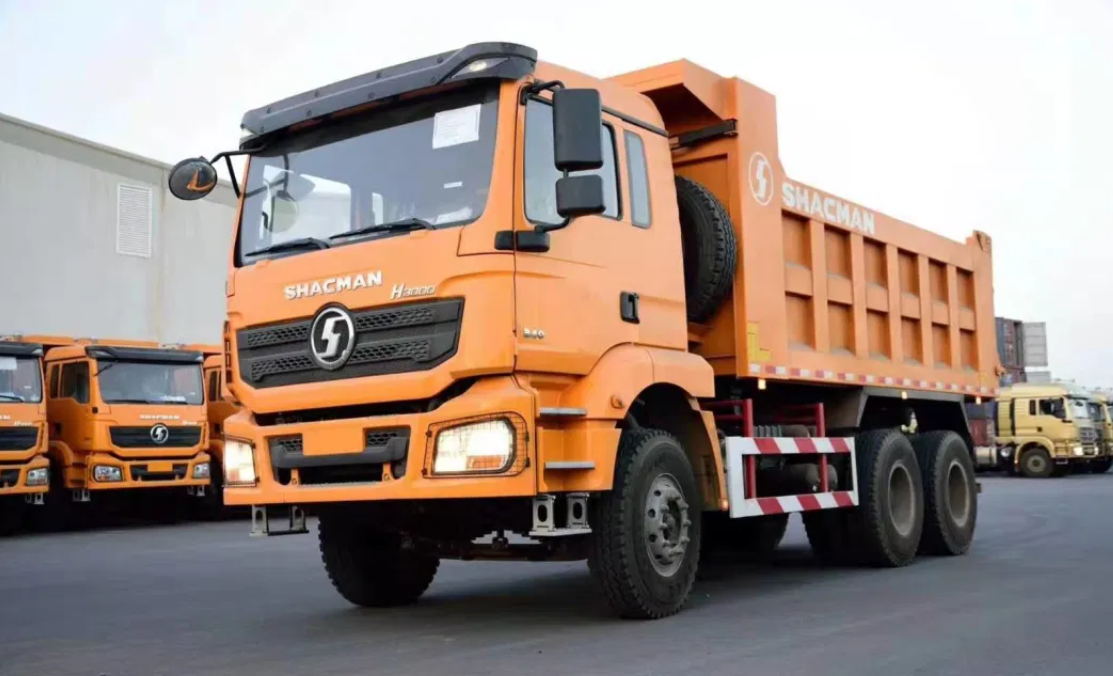

Detailed Photos
Shacman H3000 6*4 Dump Truck Sinotruk/Shacman/FAW/Foton/Dongfeng Truck

Shacman H3000 6*4 Dump Truck Sinotruk/Shacman/FAW/Foton/Dongfeng Truck
