SHANTUI DH08-G LGP Crawler Bulldozer Cummins Engine with Scarifier Ridger

Shandong Heavy Industry Machinery Co.,Ltd.
Contact Now

SHANTUI DH08-G LGP Crawler Bulldozer Cummins Engine with Scarifier Ridger

  • 1
  • 2
  • 3

Brand Name : SHANTUI

Model Number : DH08-G

Certification : ISO9001

Place of Origin : CHINA

MOQ : 1 Unit

Price : Negotiation

Payment Terms : L/C, T/T

Supply Ability : 500 Pieces/ Month

Delivery Time : Full Payment 20-30 Work Days

Packaging Details : by Sea/by Bulk/by Frame/by Container

Model : DH08-G

Engine : Cummins F3.8

Machine weight : 8950-10020kg

Shovel depth (mm) : 450

Moving Type : Crawler Bulldozer

Overall dimensions of the machine (mm) : 4442×2460×2885

Contact Now

SHANTUI DH08-G LGP Crawler Bulldozer Cummins Engine with Scarifier Ridger



Product Advantages



● The whole machine adopts a dual-circuit electronically controlled hydrostatic drive system, which is load-adaptive, can be steered with load, steered on the spot, has stepless speed regulation, is flexible and efficient, and has excellent performance in narrow site construction;



● The chassis system has a long ground contact length, large ground clearance, stable driving, and good passability;



● Equipped with a reinforced six-way shovel, the shovel blade can be raised and lowered, adjusted, tilted, etc. to meet the construction needs under different working conditions;



● The shovel blade and bow frame structure are strengthened to adapt to various heavy load and offset load conditions;



● Standard traction frame, optional three-tooth ripper;



● Equipped with earthwork movement, loosening, traction and dragging operations.



Product Parameter



Overall weight
kg
8950-10020kg
Engine

Cummins F3.8
Rated power/Rated speed
kw/rpm
75kw/2200rpm
Machine external dimensions
mm
4442*2460*2885mm
Track center distance
mm
1830
Track shoe width
mm
610
Ground contact length
mm
2225
Fuel tank capacity
L
186
Blade type

Universal Shovel
Excavation depth  mm

 450

Type of soil loosening device

Three teeth
Soil loosening depth  mm 340
Blade lifting height  mm 900

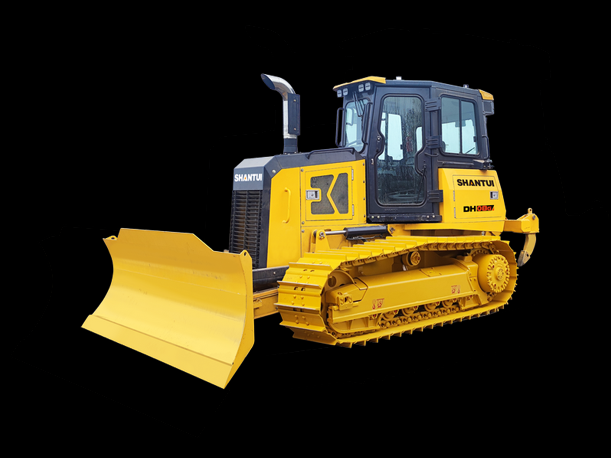

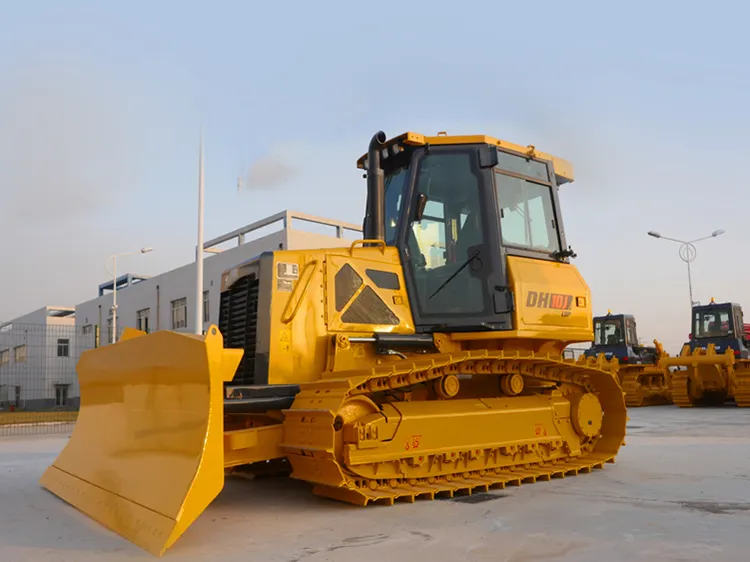

Details Images



SHANTUI DH08-G LGP Crawler Bulldozer Cummins Engine with Scarifier Ridger

SHANTUI DH08-G LGP Crawler Bulldozer Cummins Engine with Scarifier Ridger




Buy cheap SHANTUI DH08-G LGP Crawler Bulldozer Cummins Engine with Scarifier Ridger product

SHANTUI DH08-G LGP Crawler Bulldozer Cummins Engine with Scarifier Ridger Images
